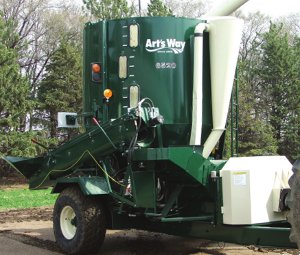

|6520 GRINDER MIXER
When looking for a quality and consistent ration mix with the luxury of both portability and flexibility, look to the leader... look to Art's-Way.
The 6520 Portable Mixer offers the largest, most innovative and productive grinder mixer on the market today.
The large 165 bushel tank with a one-piece, 26 inch hammermill offers 96
4 way reversible hardened knives and 780 sq. inch grinding area.
This grinder mixer can be tailored to your specific livestock operation.
The 6520 offers many new and innovative features for time savings and lower maintenance benefits you´ve come to know and expect from Art's-Way
|The fully self contained hydraulic system is operated by a wireless remote control for full functionality of the grinder mixer to include, raise/lower and swing of discharge auger, open/close of tank discharge gate and start and stop operation of the unload system.
The newly designed 10inch discharge auger features hydraulic orbit motor operation and decreases unload time by 50%.
The time tested mixing auger and tube design provides thorough mixing of ingredients for superior mix uniformity.
Stop... Compare and then look to the leader... look to Art's-Way.
|Tank Capacity||165 Bu. (approx. 4 tons)|
|PTO Drive||540 or 1000 rpm|
|HP requirement||80 to 160 h.p.|
|Feeder||Gravity Hopper or Feed Auger|
|Auger Feeder Length||(2.4384m) 96 inches|
|Auger Feeder Auger Diameter||(0.254m) 10 inches|
|Hammermill Width||(66.04cm) 26 inches|
|Grinder Drive||6 Double V-Belts|
|Grinder Hammers||96, Hardened, 4-way Reversible|
|Grinder Screen Area||(0.503m2) 780 sq. inches|
|Screens||13 (3.175mm to 50.8mm) (1/8 to 2 inch)|
|Diameter of Mixing Auger||12 inch diameter Flighting, 13 inch tube,
24 inch Base
|Unloading Auger Tube Diameter||(25.4 cm) 10 inch|
|Unloading Auger Standing reach at 45°
|Standard - No Extension||(5.046m) 16 ft. 7 inches|
|3 foot Fold Extension||(5.69m) 18 ft. 8 inches|
|6 foot Fold Extension||(6.35m) 20 ft. 10 inches|
|Unloading Auger||225° Horizontal, 45° to -29° vertical|
|Tyres||13.5 x 16.1 8pr High Floatation|
|Supplement Hopper||(53.34cm x 60.96cm) 21 x 24 inches|
|Overall Height||(3.2 m) (126 ins.) 10 ft. 6 inches|
|Overall Width with Auger Feeder||(2.89m) (114 ins.) 9 ft. 6 inches|
|Overall Length||(4.44m) (175 ins.) 14 ft. 7 inches|
|Approx. Weight with Auger Feeder||(2041kgs.) 4500 lbs.|
|Ground Clearance||(33.02cm) 13 inches|
