Art's-Way : Agricultural mill mixing machinery.

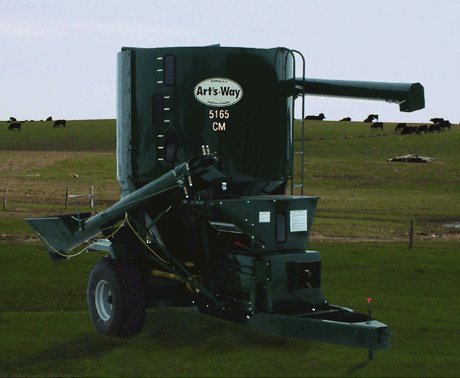

Cattle Maxx for consistant Cattle Ration Processing

The Art's-Way Cattle Maxx offers today's beef and dairy operations rolled feed in a quality and consistant ration mix. Both 20 and 30 inch heavy-duty rollermills are available with 10 inch diameter 5, 7 or 10 groove flat or sharp rolls. It is available in either 105 or 165 Bushel capacity.
Lower horsepower requirements of the rollermill provide greater economic mill efficiency.




Flat Groove Roll Design
Sharp Groove Roll Design
Both flat or groove roll designs are available.

The flat groove roll insures proper grain crimping or cracking.
Sharp groove rolls increase mill capacity while achieving desired micron particle sizes.
Specifications
Model Cattle Maxx 5105 Cattle Maxx 5165
Tank Capacity 105 Bu.   (approx. 2 tons) 165 Bu.   (approx. 4 tons)
PTO Drive 540 rpm 540 rpm
HP requirement 40 to 100 h.p. 60 to 130 h.p.
Feeder Gravity Hopper or Feed Auger Gravity Hopper or Feed Auger
Auger Feeder Length (2844.8 mm) 112 inches (2844.8 mm) 112 inches
Auger Feeder Auger Diameter (203.2 mm) 8 inch (203.2 mm) 8 inch

Rollermill Width (508 mm) 20 inches (762 mm) 30 inches
Diameter of Mixing Auger 12 inch Auger 24 inch Base 12 inch Auger 24 inch Base
Unloading Auger Tube Diameter (203.2 mm) 8 inch (203.2 mm) 8 inch
Unloading Auger Tube Length (3048 mm)  10 ft (3048 mm)  10 ft
Unloading Auger Swing 324° Horizontal 316° Horizontal
Tyres 10 x 15 8pr rib implement 13.5 x 16.1 8pr High Floatation
Supplement Hopper (53.34cm x 60.96cm) 21 x 24 inches (53.34cm x 60.96cm) 21 x 24 inches

Overall Height (2692 mm ) (106 ins.) 8 ft. 10 inches (3.2 m) (126 ins.) 10 ft. 6 inches
Overall Width with Auger Feeder (2413 mm) (95 ins.) 7 ft. 11 inches (2895.6 mm) (114 ins.) 9 ft. 6 inches
Overall Length (4318 mm) (170 ins.) 14 ft. 2 inches (4445 mm) (175 ins.) 14 ft. 7 inches
Approx. Weight with Auger Feeder (1606 kgs.) 3540 lbs. (2041 kgs.) 4500 lbs.
Ground Clearance (254 mm) 10 inches (330.2 mm) 13 inches
